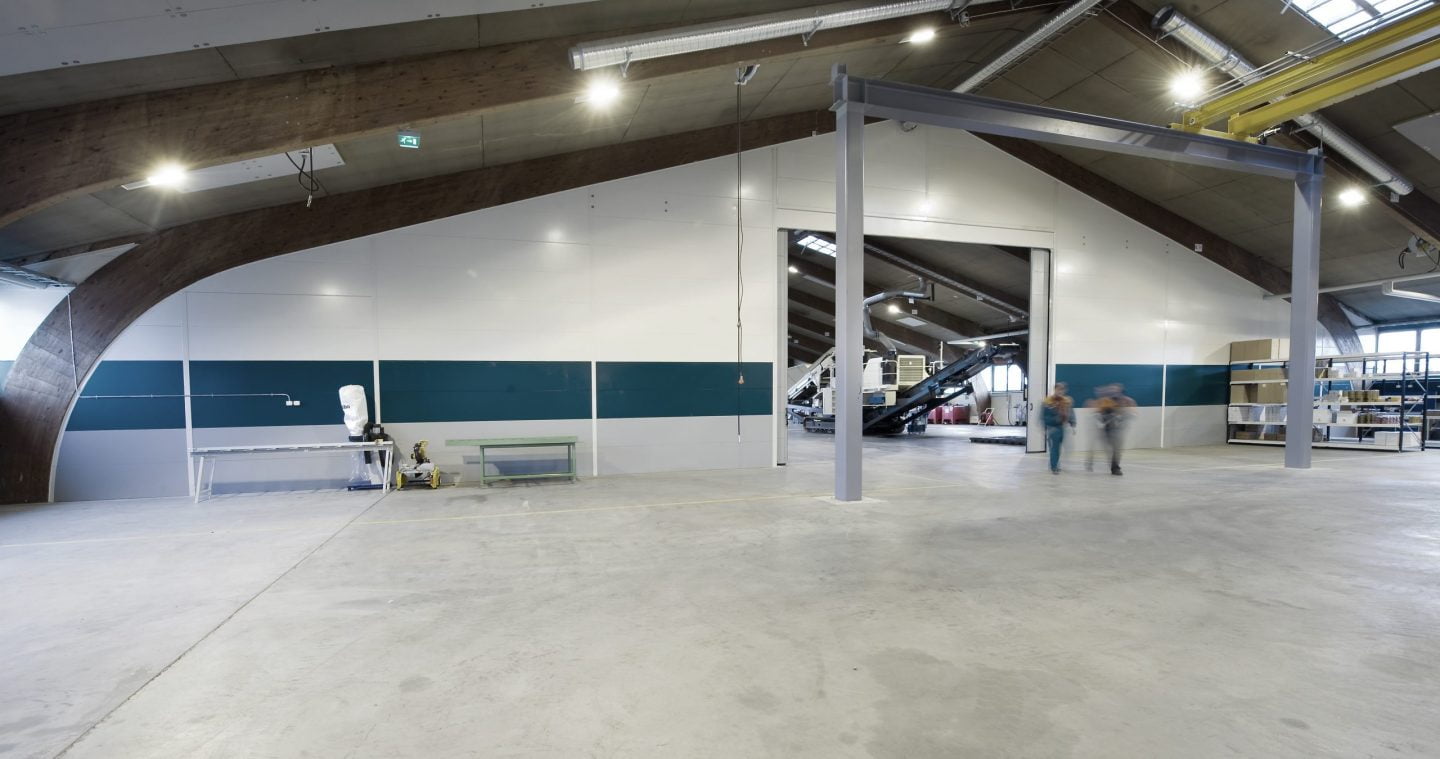

OC-10 acoustic wall system
OC-10 has been designed for industrial use on sites that require excellent sound insulation, easy installation, adaptable structure and unique appearance.
OC-10 – Powerful tool for noise control
OC-10 offers you a reliable way to fulfil strict noise-control requirements. We always design the acoustic solutions according to the noise level, noise frequencies and thermal insulation requirements of the site. The sound insulating power of our acoustic wall panels is up to 57 decibels.
Acoustic enclosures can be fitted with manual wicket, double or sliding doors, service hatches, or automated overhead doors, roller shutters or sliding doors. Windows and conveyor openings are custom-made to suit your needs.
OC-10 wall panels combine these key features
- Multifunctional use
- acoustic enclosures
- partitions
- workspaces
- lunch rooms
- Excellent sound insulation properties
- sound-insulating power up to 57 decibels
- Simple tongue-and-groove joint; easy to work with
- easy to install, dismantle and reassemble
- easy to cut openings and through holes
- Fire safety
- made from incombustible materials
- Unique design
- wide range of RAL colours available
- High-quality accessories
- aluminium soundproofing doors
- soundproofing windows
- Material options
- powder coated sheet metal
- laminated sheet metal
- perforated sheet metal
Specifications
| Panel dimensions: | height 300 or 600 mm, length from 600 to 4050 mm |
| Exterior side of the wall: | Powder coated or laminated sheet metal, perforated sheet metal |
| Interior side of the wall: | Powder coated or laminated sheet metal, perforated sheet metal |
| Panel colour: | all RAL colour chart colours, other colours on special order |
| Panel thicknesses: | 60, 90, 120, 180 and 240 mm |
| Windows: | soundproofing window with aluminium or steel frame, and laminated or tempered glass |
| Doors: | soundproofing door with aluminium or steel frame |
| Ceiling panels: | ceiling panels are identical to wall panels |
Structure combinations
| 1. SHEET METAL-SOUND INSULATION BOARD-SHEET METAL | |
|---|---|
| Panel thicknesses: | 60 mm, 90 mm, 120 mm, 180 mm, 240 mm |
| 2. SHEET METAL-PLASTER BOARD-SOUND INSULATION BOARD-SHEET METAL | |
|---|---|
| Panel thicknesses: | 60 mm, 90 mm, 120 mm, 180 mm, 240 mm |
| 3. SHEET METAL-PLASTER BOARD-SOUND INSULATION BOARD-PLASTER BOARD-SHEET METAL | |
|---|---|
| Panel thicknesses: | 120 mm, 180 mm, 240 mm |
| 4. SHEET METAL-PLASTER BOARD-PLASTER BOARD-SOUND INSULATION BOARD-SHEET METAL | |
|---|---|
| Panel thicknesses: | 180 mm, 240 mm |
| 5. SHEET METAL-PLASTER BOARD-PLASTER | |
|---|---|
| Panel thicknesses: | 240 mm |
Sound insulation properties
| Panel thickness, mm | 60 | 90 | 120 | 180 | 240 |
| Weighted Sound Reduction Index (Rw), dB | 33 | 34* | 35 | 35* | 36 |
| 1 plaster board | – | 37* | 38* | 38* | 40* |
| 2 plaster boards | – | – | 42 | 42 | 45* |
| 4 plaster boards | – | – | – | – | 47 |
| Double structure | – | – | 57 | – | – |
| Absorption class – perforated sheet metal | A | A | A | A | A |
Measured RW rating in bold and calculated value marked with *.
Installation
Thanks to their tongue-and-groove joints, OC-10 wall panels are easy to install using aluminium fasteners and profiles. You can order wall panels and build rooms yourself or use our professional installation services. OC-10 wall system also includes aluminium window frames and doors.
Installation of OC10
